| Kategori | Spesifikasi DH CS4006 4ET 60 |
|---|---|
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 4 |
| Ethernet Port Speed | 10/100 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Slots | Port 1–4: 4 × RJ-45 10/100 Mbps (PoE) Port 5–6: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Reset Button | 1 |
| Power Supply | External power supply: 53 VDC, 1.226 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% RH (non-condensing) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% RH (non-condensing) |
| Power Consumption | Idling: ≤3 W | Full load: 65 W |
| Layer | Layer 2 |
| Management Type | Smart Managed Switch (Yes) |
| MTBF | 232.62 years |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Bytes |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE |
| PoE Power | Port 1: ≤ 60 W | Port 2-4: ≤ 30 W (each) | Total ≤ 60 W |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1,2,4,5 (V+) ; 3,6,7,8 (V-) |
| Long-Distance PoE Transmission | Yes |
| VLAN Function | Port-based VLAN |
| IEEE 802.3x Flow Control | Yes |
| DHCP Function | DHCP Client |
| Equipment Management | Web Management; App Management |
| Static Protection | Air Discharge: 8 kV | Contact Discharge: 6 kV |
| Lighting Protection | Common Mode: 4 kV | Differential Mode: 2 kV |
| Net Weight | 0.28 kg (0.64 lb) |
| Gross Weight | 0.92 kg (2.02 lb) |
| Product Dimensions (L×W×H) | 130 × 90 × 26 mm (5.11″ × 3.54″ × 1.02″) |
| Packaging Dimensions (L×W×H) | 265 × 238 × 76 mm (10.43″ × 9.37″ × 2.99″) |
| Casing Material | Sheet Metal |
| Installation | Desktop Mount / Wall Mount |
| Model | DH-CS4006-4ET-60 |

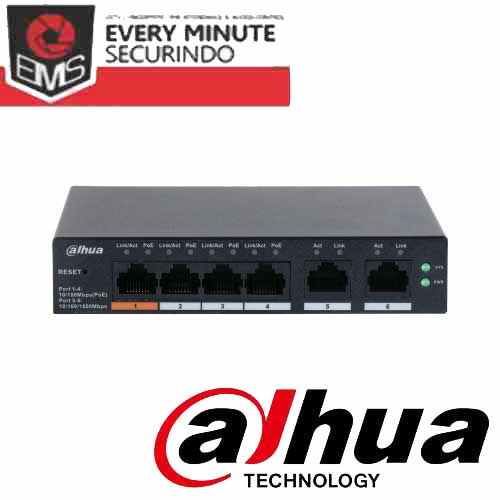

| Description | 6-Port Cloud Managed Desktop Switch with 4-Port PoE |
DH CS4006 4ET 60
Rp512.000
6-Port Cloud Managed Desktop Switch with 4-Port PoE
• Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,
IEEE802.3ab standards.
• Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power
supply standards.
• Manages PoE power consumption and PoE power on/off. Supports
Intelligent PoE.
• A wide operating temperature range and a full metal casing that is
fully-enclosed and dust-proof.
