| Kategori | Spesifikasi DH CS4226 24ET 375 |
|---|---|
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 24 |
| Ethernet Port Speed | 10/100 Mbps |
| Optical Port Speed | 1000 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps |
| Slots | Port 1–24: 24 × RJ-45 10/100 Mbps (PoE) Port 25–26: 2 × RJ-45 10/100/1000 Mbps (combo) Port 25–26: 2 × SFP 1000 Mbps (combo) |
| Reset Button | 1 |
| Power Supply | Built-in power supply: 100–240 VDC, 47–63 Hz, max 7 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% RH (non-condensing) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% RH (non-condensing) |
| Power Consumption | Idling: ≤8.5 W | Full Load: 400 W |
| Layer | Layer 2 |
| Management Type | Yes |
| Smart Managed Switch | Yes |
| MTBF | 64.20 years |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power | Port 1–2 ≤ 90 W; Port 3–24 ≤ 30 W; Total ≤ 375 W |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1,2,4,5 (V+); 3,6,7,8 (V–) |
| Long Distance PoE Transmission | Yes |
| VLAN Function | Port-based VLAN |
| IEEE 802.3x Flow Control | Yes |
| DHCP Function | DHCP Client |
| Equipment Management | Web Management; App Management |
| Static Protection | Air Discharge: 8 kV | Contact Discharge: 6 kV |
| Lighting Protection | Common Mode: 4 kV | Differential Mode: 2 kV |
| Net Weight | 2.62 kg (5.76 lb) |
| Gross Weight | 3.22 kg (7.08 lb) |
| Product Dimensions (L×W×H) | 440 × 220 × 44 mm (17.32″ × 8.66″ × 1.73″) |
| Packaging Dimensions (L×W×H) | 540 × 342 × 90 mm (21.26″ × 13.46″ × 3.54″) |
| Casing Material | Sheet Metal |
| Installation | Desktop Mount; Rack Mount |

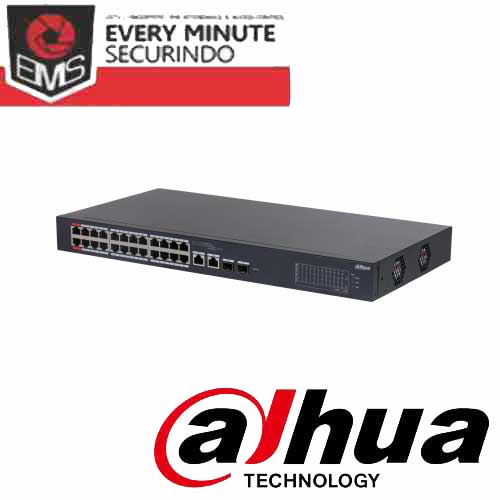

DH CS4226 24ET 375
Rp3.301.000
26-Port Cloud Managed Desktop Switch with 24-Port PoE
• Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,
IEEE802.3ab,IEEE802.3z standards.
• Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and
IEEE802.3bt power supply standards.
• Manages PoE power consumption and PoE power on/off. Supports
Intelligent PoE.
• A wide operating temperature range and a full metal casing that is
fully-enclosed and dust-proof.
