| Kategori | Spesifikasi DH HAC T1A51 U |
|---|---|
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.02 lux@F2.0 (Color, 30 IRE) 0.002 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator On) |
| S/N Ratio | >65 dB |
| Illumination Distance | 25 m (82.02 ft) |
| Illuminator Control | Auto / Manual |
| Illuminator Number | 2 (IR light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 92°; V: 48°; D: 109° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.0 m (3.28 ft); 3.6 mm: 1.3 m (4.27 ft) |
| DORI Distance (2.8 mm) | Detect: 66.0 m (216.54 ft) Observe: 26.4 m (86.61 ft) Recognize: 13.2 m (43.31 ft) Identify: 6.6 m (21.65 ft) |
| DORI Distance (3.6 mm) | Detect: 76.0 m (249.34 ft) Observe: 30.4 m (99.74 ft) Recognize: 15.2 m (49.87 ft) Identify: 7.6 m (24.93 ft) |
| Video Frame Rate | CVI: PAL: 5M@25fps, 5M@12.5fps, 4M@25fps, 1080p@25fps; NTSC: 5M@25fps, 5M@10fps, 4M@30fps, 1080p@30fps; AHD: PAL: 4M@25fps; NTSC: 4M@30fps; TVI: PAL: 4M@25fps; NTSC: 4M@30fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880×1620); 4M (2560×1440); 1080p (1920×1080); 960H (960×576/960×480) |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | On/Off (8 areas, rectangle) |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
| Video Output | CVI/TVI/AHD/CVBS (1× BNC port) |
| Power Supply | 12 VDC ±30% |
| Power Consumption | Max 2.7 W (IR On) |
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Operating Humidity | <95% RH (non-condensing) |
| Storage Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Storage Humidity | <95% RH (non-condensing) |
| Anti-corrosion Level | Basic Protection |
| Casing Material | Plastic |
| Product Dimensions (Φ×H) | Φ85.0 mm × 77.1 mm (Φ3.35″ × 3.04″) |
| Net Weight | 0.11 kg (0.24 lb) |
| Gross Weight | 0.12 kg (0.26 lb) |
| Installation | Wall mount; Ceiling mount |
DH HAC T1A51 U
Rp399.000

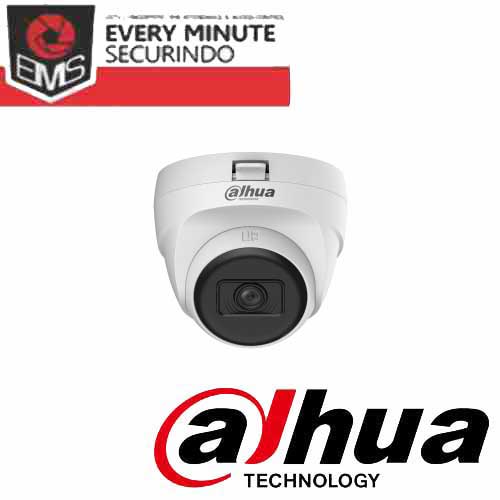

5MP IR HDCVI Fixed-focal Eyeball Camera
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to
V4.001.0000001.0.R.200908 or later version.
· Max 25 fps@5MP (16:9 video output).
· Smart IR Illumination.
· 25 m illumination distance.
· Quick-to-install eyeball saves installation time.
· 2.8 mm fixed lens (3.6 mm optional).
· CVI/CVBS/AHD/TVI switchable
