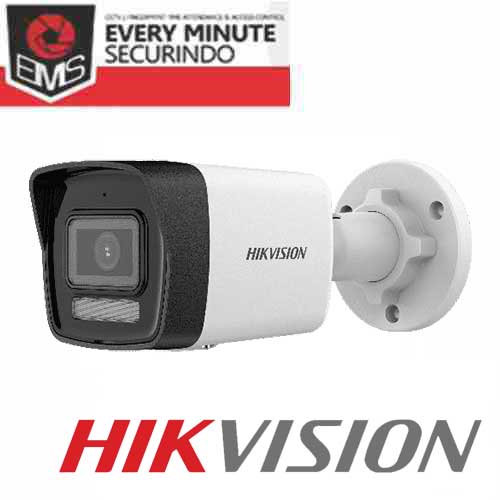

Spesifikasi Teknis DS 2CD1023G2 LIU 2 MP Smart Hybrid Light Fixed Bullet Network Camera
| Camera | |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 103°, V 56°, D 121° 4 mm: H 83°, V 44°, D 99° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm: D 45 m, O 18 m, R 9 m, I 4 m 4 mm: D 56 m, O 22 m, R 11 m, I 5 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Noise Filtering | Yes |
| Sampling Rate | 8 kHz / 16 kHz |
| Compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Network | |
| Security | Password protection, watermark, HTTP auth, WSSE, audit log, MAC host auth |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S/T/G, -F only), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users (admin/operator/user) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE10/11, Chrome 57+, Firefox 52+ |
| Image | |
| WDR | Digital WDR |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Enhancement | BLC, HLC, 3D DNR |
| Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Privacy Mask | 4 programmable polygon masks |
| Interface | |
| Ethernet | 1 RJ45 10/100 Mbps self-adaptive |
| On-Board Storage | -F: microSD/SDHC/SDXC, up to 512 GB |
| Built-in Microphone | Yes |
| Reset Key | -F: Yes |
| Event | |
| Basic Event | Motion detection (human/vehicle), tampering, exception |
| Linkage | FTP, Email, Center Notify, Recording (-F), Capture |
| General | |
| Power | 12 VDC ±25% (5 W), PoE IEEE 802.3af Class 3 (6.5 W) |
| Material | Metal & Plastic |
| Dimension | 170.8 × 66 × 69.1 mm |
| Package Dimension | 216 × 121 × 118 mm |
| Weight | 265 g (net), 495 g (with package) |
| Storage Conditions | -30 °C to 60 °C, ≤95% RH |
| Operating | -30 °C to 60 °C, ≤95% RH |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password reset via email |
| Approval | |
| EMC | FCC, CE-EMC, RCM, ICES-003 |
| Safety | UL, IEC/EN 62368-1, BIS |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IP67 (IEC 60529), IK08 (IEC 62262) |
