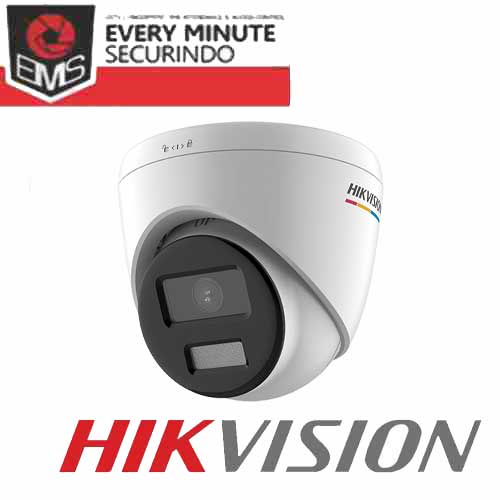

DS 2CD1327G2 L 2 MP ColorVu MD 2.0
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens | |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 106°, V 57°, D 126° 4 mm: H 83°, V 44°, D 99° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 1.5 m – ∞ 4 mm: 2.1 m – ∞ |
| DORI | |
|---|---|
| DORI | 2.8 mm: D 44 m, O 17 m, R 8 m, I 4 m 4 mm: D 56 m, O 22 m, R 11 m, I 5 m |
| Illuminator | |
|---|---|
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
|---|---|
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps – 8 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| ROI | 1 fixed region (main stream) |
| Audio | |
|---|---|
| Audio Type | -U: Mono sound |
| Noise Filtering | -U: Yes |
| Sampling Rate | -U: 8 kHz / 16 kHz |
| Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Bit Rate | -U: 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Network | |
|---|---|
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S/T/G, -F only), ISAPI, SDK |
| User/Host | Up to 32 users (Admin, Operator, User) |
| Security | Password protection, strong password, watermark, HTTP auth, ONVIF auth, audit log, MAC binding |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view: IE10/11, Local: Chrome 57+, Firefox 52+, Edge 89+ |
| Image | |
|---|---|
| WDR | Digital WDR |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Enhancement | BLC, HLC, 3D DNR |
| Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Privacy Mask | 4 polygon masks |
| Interface | |
|---|---|
| Ethernet | 1 RJ45 10/100M |
| On-Board Storage | -F: microSD/SDHC/SDXC up to 512 GB |
| Built-in Mic | -U: Yes |
| Reset Key | -F: Yes |
| Event | |
|---|---|
| Basic Event | Motion detection (human/vehicle), video tampering, exception |
| Linkage | FTP/memory card (-F), center, email, recording (-F), capture |
| General | |
|---|---|
| Power | 12 VDC ±25% (5W), PoE 802.3af (6.5W) |
| Material | Metal & Plastic |
| Dimension | Ø109.9 mm × 103.6 mm (Ø4.3 × 4.1″) |
| Package Dimension | 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight | -L: 370 g; -LUF: 380 g |
| With Package | -L: 600 g; -LUF: 620 g |
| Storage Conditions | -30 °C to 60 °C, RH ≤95% |
| Operating Conditions | -30 °C to 60 °C, RH ≤95% |
| Language | English, Ukrainian |
| Functions | Heartbeat, anti-banding, mirror, password protection, reset via email |
| Approval | |
|---|---|
| EMC | FCC Part 15B CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2019, EN 50130-4:2011+A1:2014 RCM: AS/NZS CISPR 32:2015 KC: KN32:2015, KN35:2015 |
| Safety | UL 62368-1 IEC 62368-1:2014+A11 EN 62368-1:2014/A11:2017 BIS IS 13252 (Part 1):2010/IEC 60950-1:2005 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU REACH: EC 1907/2006 |
| Protection | IP67 (IEC 60529-2013) |
