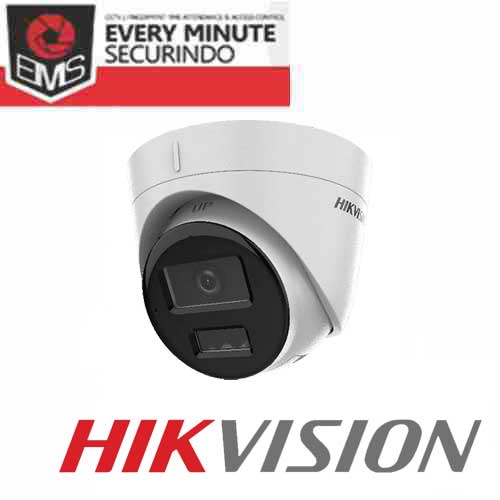

DS 2CD1343G2 LIU 4 MP Smart Hybrid Light Fixed Turret Network Camera
Camera
| Image Sensor | 1/3″ Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm: H 98°, V 54°, D 114° 4 mm: H 78°, V 42°, D 93° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
DORI
| DORI | 2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m 4 mm: D 78 m, O 31 m, R 15 m, I 7 m |
|---|
Illuminator
| Supplement Light Type | IR, White Light |
|---|---|
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline, Main, High |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| ROI | 1 fixed region for main stream |
Audio
| Audio Type | Mono sound |
|---|---|
| Noise Filtering | Yes |
| Sampling Rate | 8 kHz / 16 kHz |
| Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Bit Rate | 64 Kbps (G.711), 16 Kbps (G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
Network
| Security | Password protection, watermark, HTTP/ONVIF auth, audit log, MAC binding |
|---|---|
| Live View | Up to 6 channels |
| API | ONVIF (S/T/G*), ISAPI, SDK |
| Protocols | TCP/IP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users (admin/operator/user) |
| Client | iVMS-4200, Hik-Connect |
| Browser | IE 10/11 (plug-in), Chrome 57+, Firefox 52+ |
| WDR | 120 dB |
|---|---|
| SNR | ≥ 52 dB |
| Day/Night | Auto, Schedule, Manual |
| Enhancement | BLC, HLC, 3D DNR |
| Settings | Rotate, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Privacy Mask | 4 polygon masks |
Interface
| Ethernet | 1 RJ45 10/100M adaptive |
|---|---|
| Storage | -F model: microSD up to 512 GB |
| Microphone | Yes |
| Reset | -F model: Yes |
Event
| Basic | Motion detection (human/vehicle), tampering, exception |
|---|---|
| Linkage | Upload FTP, Email, Notify center, Recording (-F), Capture |
General
| Power | 12 VDC ±25% (max 5 W), PoE IEEE 802.3af Class 3 (max 6.5 W) |
|---|---|
| Material | Metal & Plastic |
| Dimension | Ø110 × 89.2 mm |
| Package | 150 × 150 × 141 mm |
| Weight | 340 g (net), 560 g (with package) |
| Storage | -30 °C ~ 60 °C, ≤95% RH (non-condensing) |
| Operation | -30 °C ~ 60 °C, ≤95% RH (non-condensing) |
| Language | English, Ukrainian |
| Functions | Heartbeat, Anti-banding, Mirror, Password reset via email |
Approval
| EMC | FCC Part 15, CE EMC, RCM, ICES-003 |
|---|---|
| Safety | UL 62368-1, IEC/EN 62368-1, BIS IS 13252 |
| Environment | RoHS, WEEE, REACH |
| Protection | IP67 |
