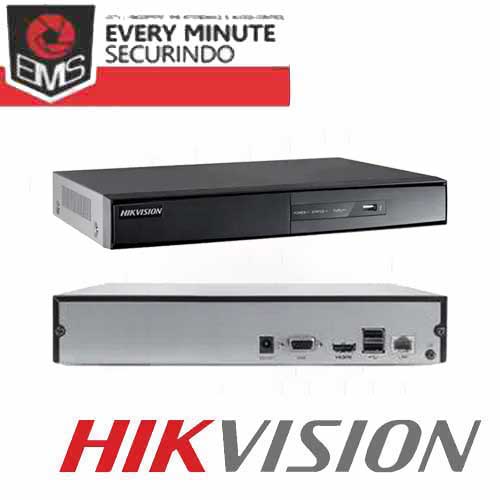

DS 7104NI Q1 M 4 ch Mini 1U NVR
Video and Audio
| IP Video Input | 4-ch Up to 6 MP resolution |
|---|---|
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
Decoding
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
|---|---|
| Recording Resolution | 6 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Decoding Capability | 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps) |
| Stream Type | Video, Video & Audio |
Network
| Remote Connection | 16 |
|---|---|
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
Auxiliary Interface
| SATA | 1 SATA interface |
|---|---|
| Capacity | Up to 6TB capacity for each disk |
| Alarm In/Out | N/A |
| USB Interface | Rear panel: 2 × USB 2.0 |
General
| Power Supply | 12 VDC, 1.5 A |
|---|---|
| Consumption | ≤ 10 W |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″) |
| Weight | ≤ 1 kg (2.2 lb) |
Certification
| CE | EN50130-4, EN 61000-3-2, EN 61000-3-3 |
|---|
