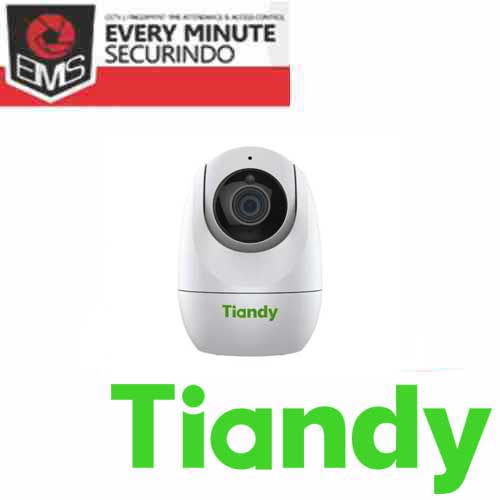

Specifications TC-2MP Color Maker Wifi Kamera | |
|---|---|
| Model | TC-H322N Spec: IW/ WIFI/ 4mm/ V4.0 |
| Camera | |
| Image Sensor | 1/2.9″ CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color:0.02Lux@ (F2.0, AGC ON), B/W:0Lux with IR |
| Shutter Time | 1s to 1/100000s |
| Day & Night | IR-cut filter with auto switch |
| Zoom | 2X |
| Lens | |
| Focal Length | 4mm |
| Aperture Range | F2.0 |
| Field of View | Horizontal filed of view: 78.6° (w) Vertical filed of view: 43.2° (w) Diagonal field of view:96.1°(w) |
| Close Focus Distance | 2 m |
| Pan&Tilt | |
| Pan Range | 350° |
| Pan Speed | 35°/s |
| Tilt Range | 0°~115°(Default 90°) |
| Tilt Speed | 19°/s |
| 3D Position | N/A |
| Preset | 256 |
| Power-off Memory | Yes |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | 15m |
| White LEDs | 1, support flash |
| Compression Standard | |
| Video Compression | S+265/ H.265/ H.264 (High profile, Main profile, Baseline) |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | 2MP(1920×1080) |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) NTSC: 25fps (1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 352×288, 640×360) NTSC: 25fps (704×480, 704×240, 352×240, 640×360) |
| Third Stream | N/A |
| HLC | Yes |
| WDR | DWDR |
| Image Stabilization | N/A |
| Defog | Digital |
| White Balance | Auto/ Semi-auto/ Manual/ Sunny/ Natural light/ Warm light/ Sodium lamp/ Incandescent lamp/ Locked white balance |
| AGC | Yes |
| Noise Reduction | 2D/3D |
| ROI | N/A |
| Picture Overlay | N/A |
| Privacy Mask | Yes,4 area |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Flip | Yes |
| OSD | 16×16, 32×32 adaptable size, Total 1 Region |
| Feature | |
| Alarm Trigger | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict |
| Auto-Tracking | Yes, based on human- detection |
| Network | |
| Protocols | HTTP/ TCP/ UDP/ DHCP/ RTMP/ RTSP/ FTP/ NTP/ DNS |
| System Compatibility | ONVIF (PROFILE S/T), SDK, CGI, RTSP |
| ANR | Yes |
| Remote Connection | ≤2 |
| User/Host | Up to 8 users. 4 user levels |
| WIFI | |
| Transmission distance | Up tp 30m(s based on actual environment) |
| Wireless standard | IEEE 802.11b/ 802.11g/ 802.11n |
| Frequency range | 2.4 GHz ~ 2.4835 GHz |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Built-In Mic | Yes |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| General | |
| Web Client Language | 2 languages, Simplified Chinese/ English |
| Operating Conditions | -10℃～45℃(IR OFF), 0-95%RH |
| Power Supply | DC12V±25% |
| Power Consumption | 6W |
| Heater | N/A |
| Material | Plastic |
| Package/Boundary Dimensions | Φ95x160mm (Φ80x113mm) |
| Gross/Net Weight | 0.38kg (0.22kg) |
