| Specifications | |
|---|---|
| Model | TC-R3232 Spec: I/ B/ K/ V3.1 |
| Input | |
| Access Channel | 32 |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 48Mbps |
| Resolution | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ UXGA/ 720P/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF |
| Preview Decoding Capability | 8MP (30fps)×2, 6MP (30fps)×2, 5MP (30fps)×3, 4MP (30fps)×4, 3MP (30fps)×5, 1080P (30fps)×8, 720P (30fps)×16, 4CIF (30fps)×32 |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | HDMI: 1024×768 (60Hz), (720P ) 1280×720 (50Hz/60Hz), 1280×800 (60Hz), 1440×900 (60Hz), (1080P) 1920×1080 (50Hz/60Hz), (2K) 2560×1440 (30Hz), (4K) 3840×2160 (30Hz) |
| Liveview Display | Simultaneous Output: VGA: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 / 20A / 20B / 25 / 32 HDMI: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 / 20A / 20B / 25 / 32 |
| VGA Output | VGA: 1024×768 (60Hz), (720P ) 1280×720 (50Hz/ 60Hz), 1280×800 (60Hz), 1440×900 (60Hz), (1080P) 1920×1080 (50Hz/60Hz) |
| Multi-screen Display | 1/ 2/ 3/ 4/ 5/ 6/ 7/ 8/ 9/ 10/ 12/ 13/ 16/ 20A/ 20B/ 25/ 32 |
| Audio Input | 1-ch, 3.5mm |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, 3.5mm, using the audio input |
| Compression | |
| Video Compression | S+265; H.265; S+264; H.264 |
| Audio Compression | G711A; G711U; AAC; ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/ CIFS; SMTP; SNMP; SRTP; SSH; SSL; TLSv1.2, TLSv1.3; TCP/ IP; UDP; Unicast; UPnP |
| Mobile Phone Access | Android; iOS; P2P_A |
| System Compatibility | ONVIF(profile T/ S/ G); RTSP; CGI; SDK |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 16 |
| Record Mode | Manual recording; Alarm recording; Schedule recording |
| Storage Method | Local HDD |
| Backup | USB storage device, Network |
| Playback Function | Play/ Pause/ Stop/ Slow/ Speed/ Backwards 30s/ Forwards 30s/ Full screen/ backup (video Editing)/ Step/ Digital Zoom |
| Alarm | |
| General Alarm | Motion; Mask Alarm; Alarm Input(IPC); Video Loss; Alarm Input(NVR); Manual Alarm |
| Exceptions Alarm | IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; IPC voltage abnormal; RTC failure |
| Intelligent Analytics | |
| AI by Camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Lens Diagnose; Scene Switch Diagnose; Signal Abnormal Detection; Signal Loss Detection; On Duty Detection; Crowd Detection; Safety Helmet Detection; People Counting; Link To Tracking; Face Detection; Human body temperature measurement; Advanced Intelligence |
| VCA Search | Heatmap; Early-warning search; Behavior Search; Thermographic retrieval; Duty search; Facial search |
| Face Detection | |
| Face Attributes | Gender; Age |
| Storage | |
| HDD Capacity | Up to 10TB capacity for each HDD |
| Disk Group | 2 Disk Group |
| External Port | |
| USB | 2×USB2.0 |
| HDMI | 1×HDMI (supports up to 4K resolution output) |
| VGA | 1×VGA |
| Network Interface | 1×RJ-45, 10/ 100/ 1000 Mbps self-adaptive Ethernet port |
| SATA | 2×SATA interface |
| Alarm I/O | 4-ch, TTL inputs, 3mA, 3.3VDC; 1-ch, relay output, 1A, 24VDC |
| General | |
| UI Language | Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian |
| Power Supply | DC12V 3.3A |
| Power Consumption | <10W (HDD not included, idling) |
| Net Weight | 1.6 kg |
| Gross Weight | 3kg |
| Boundary Dimensions | 341(L)273(W)47(H)mm |
| Package Dimensions | 415(L)140(W)375(H)mm |
| Operating Temperature | -10℃~+55℃ |
| Operating Humidity | 10%~90%RH |
| Storage Temperature | -10℃~+55℃ |
| Storage Humidity | 10%~90%RH |
| Package Kit | Network Video Recorder; Screw pack; Mouse; Power adapter; European standard power cord |

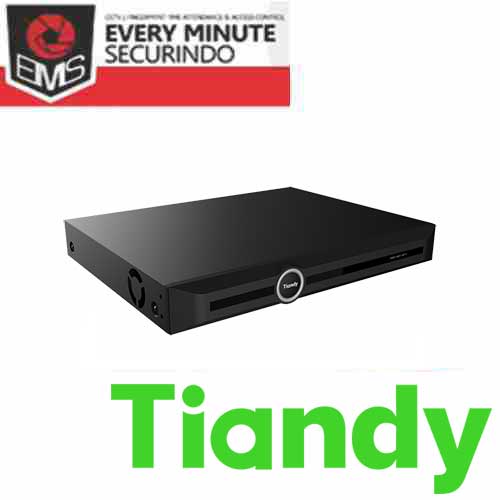

TC-R3232 H.265 2HDD 32ch NVR
Rp2.790.000
KEY FEATURES
- Up to 32-ch IP camera inputs
- Access/forwarding bandwidth at 160Mbps/48Mbps
- S+265, H.265, S+264, H.264 video formats
- 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8 preview decoding capacity
- 16-ch synchronous playback
- 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8 playback decoding capacity
- Up to 10TB capacity for each HDD
- Simultaneous HDMI and VGA outputs
- HDMI output at up to 4K resolution
- 1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
