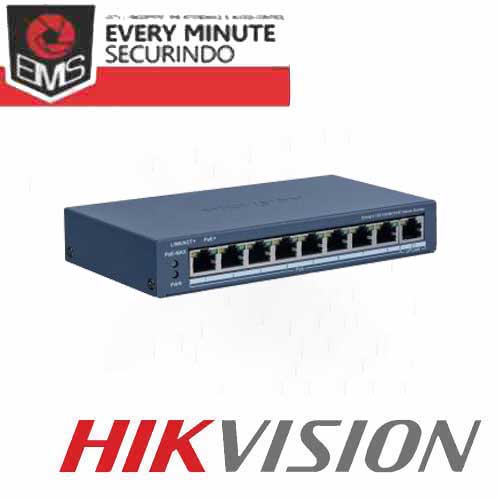

DS 3E1309P EI M 8 Port Fast Ethernet Smart POE Switch
General
| Shell | Metal material, fan-free design |
|---|---|
| Net Weight | 0.4 kg (0.9 lb) |
| Gross Weight | 0.9 kg (2.0 lb) |
| Dimensions (W × H × D) | 170.00 mm × 27.60 mm × 93.10 mm (6.69” × 1.09” × 3.67”) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54VDC, 1.2A |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 5 W |
| Surge Protection | 6 kV |
Network Parameters
| Ports | 8 × 10/100 Mbps PoE port, 1 × Gigabit RJ45 port |
|---|---|
| MAC Address Table | 8 K |
| Switching Capacity | Whole-Device Performance: 5.6 Gbps Port Performance: 3.6 Gbps |
| Packet Forwarding Rate | Whole-Device Performance: 4.17 Mpps Port Performance: 2.68 Mpps |
| Internal Cache | 4 Mbits |
PoE Power Supply
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
|---|---|
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
Software Function
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depending on camera model or cable condition. |
|---|---|
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-range mode. 8. Remotely upgrade the device. |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| System Maintenance | Support device management via web. Support DHCP Client (enabled by default). Support Super IP (fixed IP: 10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection (abnormal open/short circuits, cable length). Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1–4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
Approval
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
|---|---|
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
