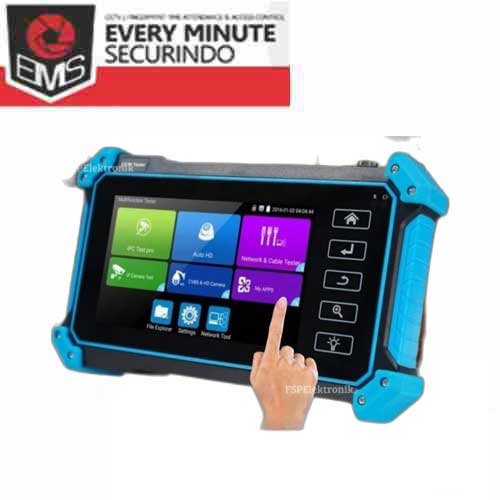

• 5.4 inch IPS touch screen, 1920×1152 resolution
• Rapid OMVIF 4K H.265/H.264,video display via mainstream
• 4K IP & Analog camera test, PTZ control
• Support CVBS 8MP TVI, 8MP CVI, 8MP AHD camera test
• DC12V 3A, DC48V PoE power output
• LAN cable & crystal head fault test
• Digital cable tracer, cable search and UTP cable can test at the same time
• 4K 30FPS HDMI input and VGA input
• 8MP EX-SDI, HD-SDI, 3G-SDI camera test
• Built-in WiFi, support WiFi camera test
• Hikvision, Dahua and Uniview test tool etc
• Upgrade Rapid ONVIF, create testing report
• Auto HD, auto recognize HD camera. Support coaxial PTZ and call OSD menu.
• VGA input, support 1920 x 1200P 60FPS
• HDMI Input, support resolution upto 4K 30FPS
• RJ45 TDR cable test, cable quality test
• UTP cable test, detect the near-end, mid-end and far-end fault point of the network cable crystal head.
Spesifikasi:
• 12V/3A power output: Output DC12V/3A power to camera
• External power supply DC 12V 1A
• Battery Built-in 7.4V Lithium polymer battery, 2600mAh/3350mAh
• Rechargeable: After charging 3-4hours, normal working time 5 hours
• Auto off: 1-30 mins
• Working Temperature -10°C —+50°C
• Working Humidity 30%-90%
• Dimension/weight 183 x 110 x 36,5mm / 0.32kg
