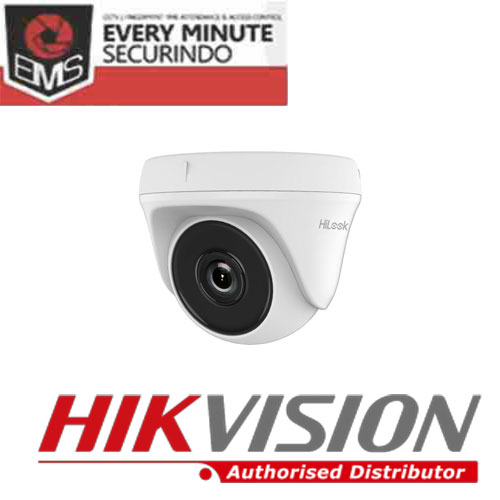

THC-T120-PC

Rp164.600

Interface
Video Output	1 HD analog output
Switch Button	TVI / AHD / CVI / CVBS
Menu	Day/Night Mode
IR Cut Filter	DWDR (Digital Wide Dynamic Range)
Backlight Compensation	Support
Language	English
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR
Camera
Image Sensor	2 MP CMOS image sensor
Signal System	PAL / NTSC
Frame Rate	PAL: 1080p@25fps NTSC: 1080p@30fps
Resolution	1920 (H) × 1080 (V)
Shutter Time	1/25 (1/30) s to 1/50,000 s
Min. Illumination	0.02 Lux @(F2.0, AGC ON), 0 Lux with IR
Lens	2.8 mm, 3.6 mm
Horizontal Field of View	2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
Lens Mount	M12
Day & Night	IR cut filter
Synchronization	Internal synchronization
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
General
Power Supply	12 VDC ± 15%
Power Consumption	Max. 2.1 W
Material	Plastic
IR Range	Up to 20 m
Dimensions	Ø 85.4 mm × 76.12 mm ( Ø 3.38″ × 2.67″) 130 g (0.29 lb.)
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
